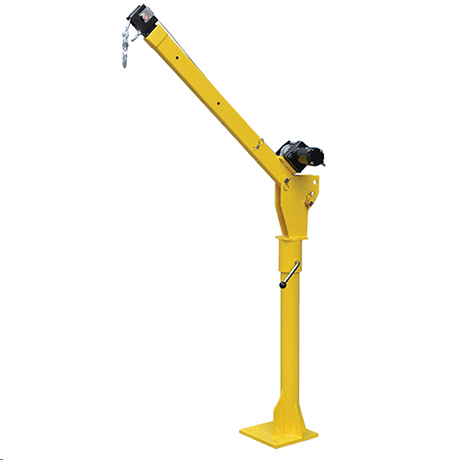

CRANE UTE 12 VOLT 800KG 1800MM MAX LIFT

CRANE UTE 12VOLT 800KG 1800MM MAX REMOTEHAND PIECE. LINE LIFTING CAPACITY 500KGSINGLE LINE 800KG DOUBLE TRAY BOLT MOUNTCRANE UTE 12 VOLT 800KG 1800MM MAX LIFT- COMPACT DESIGN, FOLDS AWAY WHEN NOT IN USE- EASILY INSTALLED, ON SITE OR BY A VEHICLE BODY BUILDER- SINGLE LINE LIFTING CAPACITY (MAXIMUM) 500KG- DOUBLE-LINE LIFTING CAPACITY (MAXIMUM) 800KG- LIFTING HEIGHT MAXIMUM STANDARD (BASE TO HOOK) : 1940MM- REACH MAXIMUM (FROM CENTER OF ROTATION): 1490MM- ROTATION (CONTINUOUS) WITH BRAKE: 360° MANUAL- LIFTING CABLE: 4.8MM X 4.5 METRE, 1 PIECE (FOR SINGLE-LINE LIFTING)- LIFTING CABLE: 4.8MM X 5.5 METRE, 1 PIECE (FOR DOUBLE-LINE LIFTING)- LINE SPEED WITH NO LOAD: 3.6M/MIN SINGLE LINE- POWER REQUIREMENTS: 12 VOLTS DC 125 AMPS- SWITCH CABLE: 4.2 METRE- MOUNTING BASE: 250 X 250 X 18MM- MOUNTING BOLT HOLE PATTERN: 170X170MM- FINISH: POWDER COATED- WEIGHT 67KGFREIGHT DIMENSIONS- (L)1380MM X (W) 380MM X (H) 350MM
